The pursuit of the perfect espresso is an endless quest.

When designing the Rocket Espresso R 9, engineer Ennio Berti prioritised optimal temperature stability by opting for a fully saturated group and implementing PID control in the stainless steel multi-boiler system.

Pressure transducer technology was used to dramatically reduce steam pressure recovery times, increasingly important in high volume cafes.

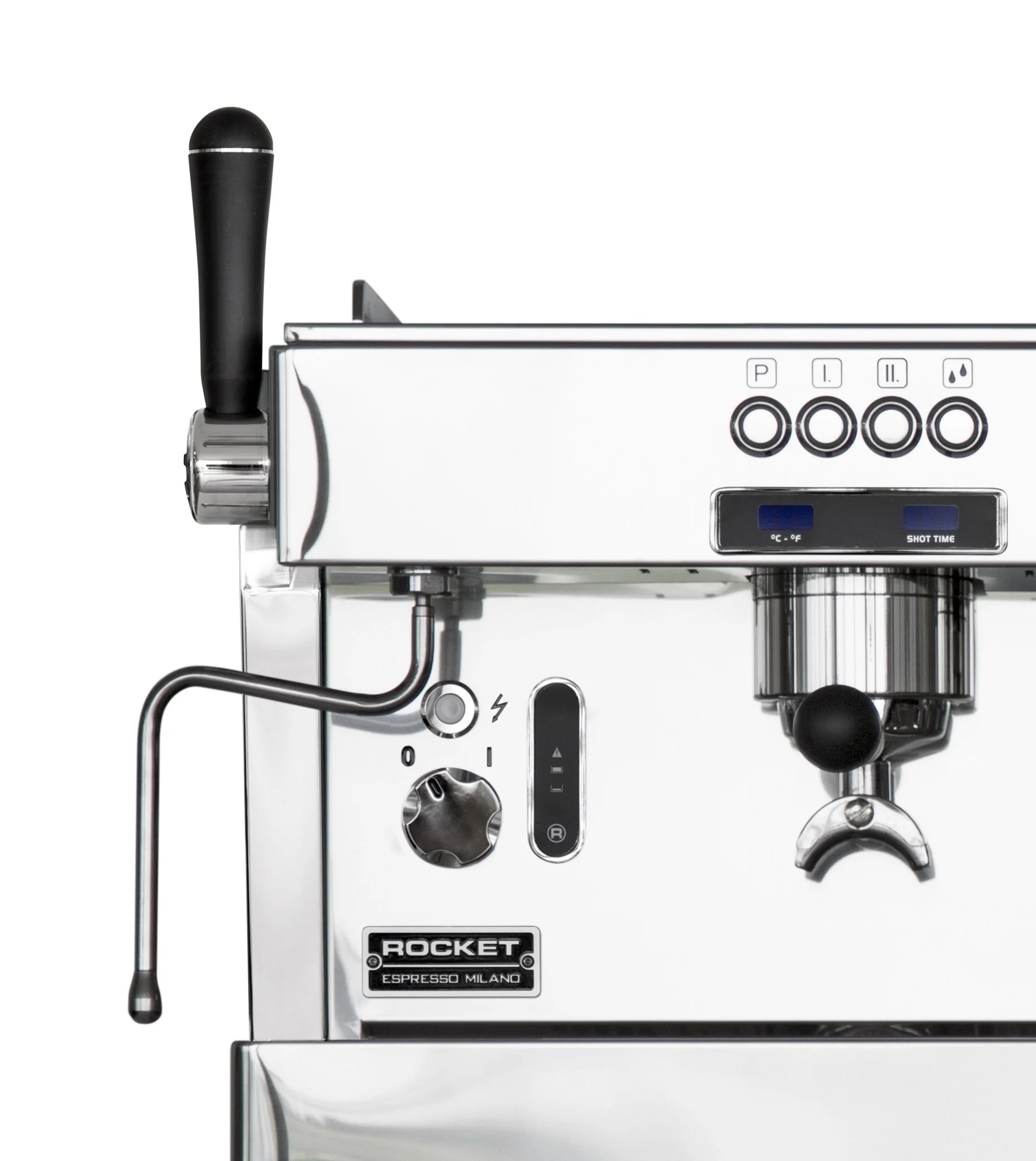

Maintaining the distinctive contemporary aesthetic that sets Rocket Espresso machines apart, the R 9 features a lowered machine height, allowing improved interaction between the barista and the customer.

The digital display enhances precision, allowing for boiler temperature adjustments in increments of 0.1 degrees Celsius and providing individual shot timers for each group.

SPECIFICATIONS

TECHNOLOGY

Multi boiler

PORTION CONTROL

Automatic

COFFEE BOILER

1 Group: 2 x 1.9 l

2 Group: 3 x 1.9 l

3 Group: 4 x 1.9 l

MAIN BOILER

1 Group: 9 l

2 Group: 12 l

3 Group: 12 l

POWER

1 Group: 5.9 KW

2 Group: 7.7 KW

3 Group: 8.9 KW

DIMENSIONS

1 Group: 760W × 590D × 497H mm

2 Group: 980W × 590D × 497H mm

3 Group: 1200W × 490D × 471H mm

BODY WORK

Stainless steel AISI 304 (black or white by request)

BOILER MATERIAL

Stainless steel AISI 304

THERMAL CONTROL

PID / Pressure transducer

STEAM WANDS

Stainless steel + cool touch

STEAM VALVES

Lever operated

CUPS HEIGHT

86mm

SHOT TIMER

Standard

8.9 KW

5.9 KW

7.7 KW

9 l

2 x 1.9 l

12 l

980W × 590D × 497H mm

1200W × 590D × 497H mm

4 x 1.9 l

4 Group

760W × 590D × 497H mm

2 Group

3 x 1.9 l

12 l

3 Group
